Ready-to-deploy data logger bundles

Robust, long-term data logging with BLE connectivity, upgradable to telemetry. Reliable and proven user interface with easy access through the app. Built to handle extreme environments such as heat, cold, dust, and moisture with an IP65 enclosure. Solar powered for extended operation and supported by a replaceable battery for easy maintenance.

The Water Level Sensor bundle provides precision tracking of water levels in tanks, lakes, reservoirs, ponds, rivers, and streams. Insight into water level trends helps operators prevent downtime, manage potable, irrigation, or fire control water availability, provide accurate data to government agencies, and manage environmental impacts of water usage.

Key Features & Benefits

• Wireless Bluetooth® connectivity with optional telemetry upgrade
• IP65 enclosure for protection from dust and moisture
• Solar powered with replaceable battery for long service life
• Easy data access and configuration through the myRanch app
• Reliable performance in harsh environmental or industrial conditions

Typical Water Level Monitoring Uses

• Irrigation and stock tanks — catch a low tank before it runs dry
• Ponds and reservoirs — track seasonal storage and drawdown
• Canals and ditches — stage at diversions and turnouts
• Creeks and streams — stage records for compliance reporting
• Rain catchment cisterns — commercial or residential
• Fire suppression tanks — confirm reserves stay at required levels
• Wastewater lagoons and lift stations — level and overflow warning

Sensor Specifications

Range	0 to 15 PSI (34.63 ft of water column)
Accuracy	±2 in
Pressure port	1/4 in NPT
Input voltage	12V
Output	4-20mA (converted to 1-5V via load resistor)
Operating temp.	-4°F to 176°F (-20°C to 80°C) — freezing water will permanently damage the sensor
Dimensions	1 × 4.5 in (2.5 × 11.4 cm)
Weight	4 lb (1.8 kg)
Enclosure	Stainless steel membrane, waterproof to 50 ft (15.2 m)
Sensor port	Analog or SDI-12
Compatibility	Analog — RM400, RS130, RS3xx; SDI-12 — RS10
Submersible cable	50 ft (15.2 m) or 100 ft (30.5 m)
IP rating	IP66

What's in the Box

• RS10 Datalogger
• WL-SUB15-SDI-4P Water Level Sensor
• User Manual

This bundle includes 5 temperature/humidity beacons, but you can add up to 10 total. If beacons are exposed outside to track air temperature, a radiation shield is recommended for accurate readings.

The RS10 serves as the data logger, recording and storing readings from the Temperature & Humidity Beacon automatically. Data is retrieved on-site via Bluetooth® connection and downloaded to a CSV file or pushed to the online cloud software.

Key Features & Benefits

• Accurate temperature and humidity monitoring with ±0.4°C precision
• Long-range Bluetooth® link between RS10 and Beacon (up to 1,000 ft range)
• IP67-rated waterproof and dustproof sensor design for outdoor durability
• Solar-powered RS10 with replaceable internal battery for continuous operation
• Easy on-site data download via web application
• Cable-free setup with low maintenance requirements

Typical Uses

• Compare zones across a greenhouse range or nursery
• Several cold-storage rooms or coolers logged from one unit
• Temperature gradients through a warehouse or packing house
• Multiple outbuildings within 1,000 ft of the logger
• Finding hot and cold spots before committing to a fixed install

RS10 Specifications

Signal type	SDI-12
Sample rate	15 minutes
Excitation voltage	12V DC
Bluetooth	Version 5.x, built-in omnidirectional antenna, up to 1,000 ft (305 m) to host unit
Solar panel	Two fixed panels, 0.6W total output
Battery	3.6V 1000mA NiMH pack
Run time	Up to 21 days without sunlight (single sensor); up to 7 days (multi-sensor)
Enclosure	Weather-resistant polycarbonate with gasketed lid
Mount	1 inch trade size or channel strut
Operating temp.	-40°F to 185°F (-40°C to 85°C)
Dimensions	5.5 × 3.5 × 2.36 in (14.0 × 8.9 × 6.0 cm)
Weight	1 lb (0.45 kg)
IP rating	IP66
Approvals	FCC, IC, CE

A ready-to-deploy wireless monitoring solution combining the RS10 data logger with the Bluetooth® Temperature & Humidity Beacon. This bundle provides accurate temperature and humidity tracking for indoor or outdoor environments, with long-range Bluetooth® connectivity and durable, long-term performance.

Typically more than one beacon is used to monitor conditions in multiple locations. If the sensor is to be exposed outside, a radiation shield is recommended.

The RS10 serves as the data logger, recording and storing readings from the Temperature & Humidity Beacon automatically. Data is retrieved on-site via Bluetooth® connection and downloaded to a CSV file or pushed to the online cloud software.

Key Features & Benefits

• Accurate temperature and humidity monitoring with ±0.4°C precision
• Long-range Bluetooth® link between RS10 and Beacon (up to 800 m line-of-sight)
• IP67-rated waterproof and dustproof sensor design for outdoor durability
• Solar-powered RS10 with replaceable internal battery for continuous operation
• Easy on-site data download via web application
• Cable-free setup with low maintenance requirements

Typical Uses

• A single cold-storage room or cooler — confirm it holds overnight
• One greenhouse or hoop-house zone
• Control rooms and equipment enclosures
• Remote sheds and outbuildings with no power available
• Spot-checking one problem location before scaling up

RS10 Specifications

Signal type	SDI-12
Sample rate	15 minutes
Excitation voltage	12V DC
Bluetooth	Version 5.x, built-in omnidirectional antenna, up to 1,000 ft (305 m) to host unit
Solar panel	Two fixed panels, 0.6W total output
Battery	3.6V 1000mA NiMH pack
Run time	Up to 21 days without sunlight (single sensor); up to 7 days (multi-sensor)
Enclosure	Weather-resistant polycarbonate with gasketed lid
Operating temp.	-40°F to 185°F (-40°C to 85°C)
Dimensions	5.5 × 3.5 × 2.36 in (14.0 × 8.9 × 6.0 cm)
Weight	1 lb (0.45 kg)
IP rating	IP66
Approvals	FCC, IC, CE

This package pairs the RS10 Data Logger with an AquaCheck Subsurface Probe, providing a complete solution for tracking soil moisture at multiple depths. Designed for agriculture and irrigation management, it delivers high-resolution soil profile data to help optimize watering schedules, reduce runoff, and improve yield.

Key Features & Benefits

• Virtually maintenance free
• Effective across a full range of soil types, from dry to saturated
• Provides detailed soil profile charts and water content estimates by depth
• Continuous monitoring using proven capacitance technology
• Seamless integration with the RS10 via SDI-12 connection
• Replaceable solar-powered battery for long service life
• IP67-rated enclosure for rugged outdoor environments
• Data accessible through the myRanch™ platform; exportable for analysis
• Upgradable to real-time telemetry for remote access and automation

Typical Uses

• Irrigation scheduling & optimization — determine when and how much to irrigate based on actual soil conditions; common in orchards, vineyards, row crops, and greenhouses.
• Soil profile & wetting front monitoring — track how water moves vertically, identify compaction zones or restricted drainage, improve aeration and infiltration.
• Root zone monitoring — see which depths the crop draws water from and support variable-depth irrigation strategies.
• Environmental & hydrological monitoring — measure infiltration, drainage, and soil water storage in forestry, watershed, and reclamation sites.
• Greenhouse & controlled environments — precision fertigation control for high-value crops like berries, tomatoes, and leafy greens.

Sensor Specifications

Type	Soil capacitance and temperature
Measurement	0 to 100% scaled frequency (0 = open air, 100 = distilled water)
Diameter	1.25 in (3.2 cm) — see description for lengths
Sensor port	SDI-12
Cable	10 ft (3 m), direct burial, outdoor/UV rated
Connector	SwitchCraft Mini-Con Circular Bayonet, 4-pin plug
IP rating	IP66

What's in the Box

• RS10 Datalogger
• Aquacheck Soil Moisture Probe
• User Manual

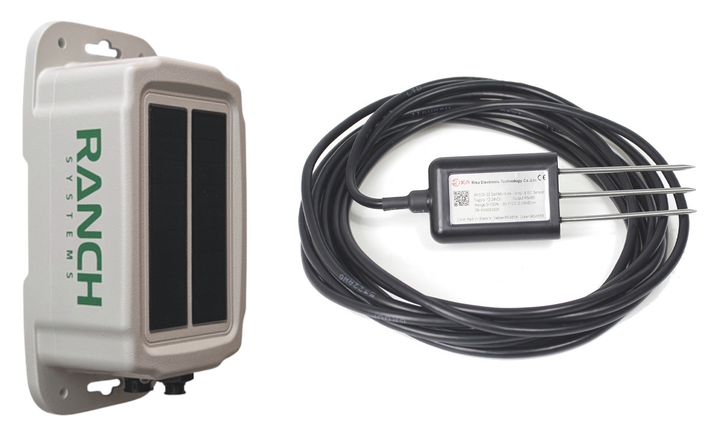

This package pairs the RS10 Data Logger with the Rika RK520, a rugged stainless-steel soil probe that reads moisture, temperature, and electrical conductivity from a single insertion. Ideal for precision farming, horticulture, and environmental research, it enables efficient water management, crop health monitoring, and soil quality assessment. The probe can be inserted at the soil surface or down a soil profile.

Key Features & Benefits

• One probe measures soil moisture, temperature, and electrical conductivity together
• Rugged 316L stainless steel probe, rated for direct burial
• Multiple RK520 probes can be daisy-chained off one RS10 using splitter cables
• Especially well suited for high-density deployments like nurseries and greenhouses
• IP68-rated cable and enclosure for long-term outdoor or buried service
• Seamless integration with the RS10 via SDI-12 connection
• Data accessible through the myRanch™ platform; exportable for analysis

Typical Uses

• Irrigation & fertigation management — track moisture and salinity together to fine-tune watering and nutrient delivery.
• Soil salinity monitoring — the EC reading flags salt buildup before it affects crop health.
• Precision farming & horticulture — single-point moisture, temperature, and EC readings support site-specific management.
• High-density deployments — nurseries and greenhouses, using multiple daisy-chained RK520 probes off one RS10.
• Environmental & soil quality research — track soil condition trends over time.

Sensor Specifications

Type	FDR soil moisture, solid-state temperature, AC-excitation EC
Soil moisture range	0–50%, 0–100% (content percent)
Soil moisture accuracy	±2% @ 0–50%, ±3% @ 51–100%
Temperature range	-22°F to 158°F (-30°C to 70°C)
Temperature accuracy	±0.5°C
EC range	0–5,000 / 10,000 / 20,000 μS/cm
EC accuracy	±3% FS
Sensor port	SDI-12
Input voltage	12VDC (6mA consumption)
Probe	316L stainless steel, 1.8 × 0.6 × 5.7 in (45 × 15 × 145 mm)
Cable	16 ft (5 m), outdoor/UV-rated, direct burial, IP68
Connector	SwitchCraft Mini-Con Circular Bayonet, 4-pin plug
Enclosure IP rating	IP68
Operating temp.	-40°F to 176°F (-40°C to 80°C)
Weight	8.2 oz
Approvals	CE, ISO 9001
Telemetry compatibility	RS10 (Port 1), RM400/RS130 (A1 Port 1), RS330 (Port 6), RSEXP-SERIAL (Port 1 or 3)

What's in the Box

• RS10 Datalogger
• Rika RK520 Soil Moisture, Temp & EC Probe
• User Manual

This bundle includes the RS10 Data Logger and a 4-pin sensor cable (CBL-SENSOR-4P) which provide a flexible foundation for connecting a wide range of sensors. It supports SDI-12 and MODBUS inputs allowing you to record and manage environmental or equipment data with ease. Data can be downloaded via Bluetooth® using the myRanch™ app. The system can also be upgraded to telemetry for remote access through Ranch Cloud™.

Typical Uses

• Connects directly to engine panels such as Murphy TEC10, MPC20, or ML2000 to capture Modbus register data and equipment status.
• Compatible with analog, digital, SDI-12, and RS-485/Modbus sensors for monitoring environmental or operational parameters.
• Ideal for pump stations, irrigation systems, or engine-driven equipment where periodic data collection is sufficient.
• Can be used by equipment rental agencies and operators to track runtime, fuel usage, or maintenance intervals.

Key Features & Benefits

• Leans heavily on Ranch Systems' experience with Murphy engine panel controls and other MODBUS devices.
• Other models of MODBUS devices can be integrated via custom device definition.
• Can be used to integrate already-supported SDI-12 devices.

CBL-SENSOR-4P Specifications

Length	10 ft (3 m)
Maximum length	Up to 75 ft, sensor dependent
Direct burial	Yes
Shield	Foil, outdoor/UV rated
Connector	SwitchCraft Mini-Con Circular Bayonet Plug; End A 3/4/6-pin plug, End B flying leads
Temperature rating	-4°F to 176°F (-20°C to 80°C)
IP rating	IP66
Compatibility	RM400, RS130, RS3xx, and sensor or expansion unit with bare wire or terminal block connector

What's in the Box

• RS10
• CBL-SENSOR-4P
• User Manual

Robust, long-term datalogging with BLE connectivity, upgradeable to telemetry. Reliable and proven user interface with easy access through the app. Built to handle extreme environments such as heat, cold, dust, and moisture with an IP65 enclosure. Solar powered for extended operation and supported by a replaceable battery for easy maintenance.

Ideal for irrigation systems, greenhouses, nurseries, mining, and construction, this bundle provides precision tracking of pump and water pressure across multiple locations (for example pre- and post-filter stations, air compressors, high pressure pump). Insight into pressure trends helps operators prevent downtime, manage valve activation, and optimize system performance.

Key Features & Benefits

• BLE connectivity with optional telemetry upgrade
• IP65 enclosure for protection from dust and moisture
• Solar powered with replaceable battery for long service life (up to two years)
• Easy data access and configuration through the myRanch app
• Reliable performance in harsh environmental or industrial conditions

Typical Uses

• Pump discharge pressure — spot a failing pump or a lost prime
• Pre- and post-filter pressure — know when a filter needs backflushing
• Irrigation line pressure — confirm blocks are running at design pressure
• Air compressors and high-pressure pump stations
• Greenhouse and nursery misting-line pressure
• Mining and construction dewatering systems

What's in the Box

• RS10 Datalogger
• PS-250-4P Pressure Transducer
• User Manual
• Optional Extension Cable

Capture precise weather insights wherever you need them. The Mini Weather Station measures temperature, humidity, wind speed, wind direction, and barometric pressure — all in one durable, easy-to-install device.

Perfect for agriculture, warehousing, construction, research, and facility management, this station helps you monitor micro climates, verify compliance, plan weather-sensitive operations, and maintain ideal environmental conditions.

Data is stored internally on the RS10 and can be downloaded via Bluetooth® to your phone, tablet, or PC for easy analysis and record keeping.

Built for reliability and portability, the Mini Weather Station delivers professional-grade weather tracking in a compact, cost-effective package, wherever accurate data matters most.

Key Features & Benefits

• Comprehensive measurements: temperature, humidity, wind speed, wind direction, and barometric pressure for a complete weather profile
• Compact and portable design ideal for both permanent installations and mobile field studies
• Internal data logging stores readings locally without a continuous network connection
• Bluetooth® connectivity to download and analyze data on a mobile device or PC — no cables required
• Multi-industry application: agriculture, environmental research, warehouse monitoring, construction, and facility management
• Durable construction designed to withstand outdoor conditions for dependable, long-term use

Typical Uses

• Agriculture: monitor micro climates, optimize irrigation, and track growing conditions
• Warehousing & manufacturing: verify environmental compliance, maintain storage conditions, and monitor airflow
• Construction & job sites: evaluate site weather conditions to improve safety and project planning
• Environmental research: collect accurate field data for climate studies, site surveys, and academic projects
• Facility management & HVAC: assess indoor and outdoor air conditions for building performance and comfort

What's in the Box

• RS10 Data Logger
• RS-WS-MINI Weather Station
• User Manual

The METER Group TEROS 12 delivers precise, reliable measurements of soil moisture, temperature, and electrical conductivity (EC) in one rugged sensor. Its 70 MHz frequency minimizes salinity and textural interference, ensuring consistent accuracy across a wide range of soils and substrates. Stainless steel needles provide excellent EC contact while minimizing soil disturbance during installation.

Built for long-term field performance, the TEROS 12 is maintenance-free, direct-burial rated, and fully compatible with the RS10 datalogger.

Key Features & Benefits

• Measures soil moisture, temperature, and EC independently
• High-frequency (70 MHz) design for improved accuracy in saline or varied soils
• Stainless-steel needles minimize soil disruption during installation
• Direct-burial and UV-stable for permanent outdoor installation
• Low-maintenance, long-term reliability in the field

Typical Uses

• Irrigation scheduling — water on actual root-zone moisture, not a calendar
• Salinity monitoring — catch EC climbing in the root zone before yield suffers
• Fertigation feedback — confirm applications reach the depth you're targeting
• Soil profiling — track how moisture moves through the profile between events
• Greenhouse and soilless media, where EC drift is a constant risk
• Trial plots needing moisture, temperature, and EC from one sensor

Sensor Technical Specifications

Soil moisture	Frequency domain, volumetric water content, range 1 to 80%. Generic calibration ±0.03 m³/m³ (±3% VWC) typical in mineral soils (EC < 10 dS/m); medium-specific ±0.01–0.02 m³/m³ (±1–2% VWC)
Soil temperature	Thermistor, -40°F to 140°F (-40°C to 60°C), ±1°C
Electrical conductivity	Stainless steel probes, 0 to 23 dS/m. ±5% (0–5 dS/m), ±10% (5–10 dS/m); 10–23 dS/m custom calibration required
Operating temp.	-40°F to 140°F (-40°C to 60°C)
Dimensions	5.5 × 1.25 × 2.5 in (10 × 3.2 × 6.5 cm)
Weight	1 lb (0.5 kg)
Sensor port	SDI-12

Remote and robust water/air/soil temperature sensing solution with ease of data collection and high-volume data storage. Hands-free data collection — handling of the sensor or data logger is not required during data collection. Data logger battery and sensor are both replaceable. Option for additional sensor inputs. 300K datapoint capacity.

Key Features & Benefits

• Accurate digital SDI-12 sensor for air, soil, or water temperature (±0.3°C)
• Rugged stainless steel probe, IP68 rated for harsh environments
• Quick plug-and-play setup with RS10 via 4-pin SDI port
• Solar powered, maintenance-free operation with replaceable battery
• Stores up to 300,000 data points for long-term field deployment
• Wireless Bluetooth® data access through the myRanch™ app — no wading required
• Expandable system for multi-sensor or real-time telemetry setups
• Durable, reusable components for lower lifetime cost

Typical Uses

• Government and environmental agencies (EPA, Water Boards, CDFW) monitoring water temperature for compliance and habitat studies
• Engineering and consulting firms tracking environmental impact and reporting project data
• Universities and research groups studying soil, air, and water temperature in field experiments
• Water, energy, and hydroelectric utilities monitoring discharge and intake temperatures for permit compliance
• Agricultural operations monitoring soil temperature for irrigation and crop management
• Watershed and restoration projects performing long-term environmental monitoring

Sensor Specifications

Type	Digital temperature sensor
Range	-40°F to 176°F (-40°C to 80°C)
Resolution	0.01°C
Accuracy	±0.3°C
Sensor port	SDI-12
IP rating	IP68
Compatibility	RM400, RS10, RS130, RS330
Cable	15 ft (5 m), customizable; direct burial, outdoor/UV rated; IP66 connector

What's in the Box

• RS10
• TP-SDI-15-4P Sensor
• User Manual
